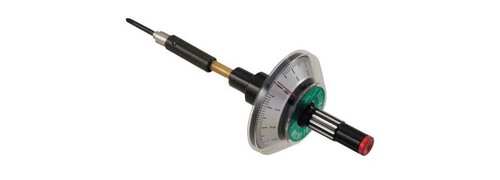

Indicating Torque Screwdriver FTD-S

Get a Price/Quote

MOQ : 1 Piece

Indicating Torque Screwdriver FTD-S Specification

Motor Power
Manual Operation

Gauge
Analog Gauge

Tensile Strength
1200 MPa approx.

Features
Easy-to-read scale, Reversible, Pre-set torque setting, Robust build

Grip Type
Non-slip

Surface Finish
Chrome Plated

Function
Indicates specified torque value when reached

Power Source
Manual

Tool Type
Indicating Torque Screwdriver

Material
High-grade Steel

Handle Material
Ergonomic Plastic

Shape
Straight

Dimension (L*W*H)
170 mm (Length x 25 mm (Handle Diameter)

Locking Mechanism
Yes, for pre-set torque

Applicable Standards
Complies with ISO 6789

Torque Range
0.4 6 Nm

Weight
Approx. 150g

Scale Graduation
0.1 Nm

Usage
Electronic assembly, precision fastening tasks

Color
Black and Silver

Accuracy
6% of reading

Drive Size
1/4 inch Hex

Indicating Torque Screwdriver FTD-S Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Day

Delivery Time
1 Week

Main Export Market(s)
Australia, Eastern Europe, Western Europe, Africa, Central America, Middle East, South America, Asia, North America

Main Domestic Market
All India

About Indicating Torque Screwdriver FTD-S

Indicating Torque Screwdriver FTD-S

Application

For inspection and tightening.

Features

Basic model indicating torque screwdriver.
Suitable for inspecting tightened screws.
With bi-directional scale plate, it can be used for retightening
Memory pointer captures peak torque (refer to the attached picture).
FTD8N2-S and FTD16N2-S comes with Auxiliary tightening tool as standard accessory.

Specifications

Accuracy 3%
S.I. MODEL			FTD2CN-S	FTD5CN-S	FTD10CN-S	FTD20CN-S	FTD50CN2-S		FTD100CN2-S	FTD200CN2-S	FTD400CN2-S	FTD8N2-S	FTD16N2-S
TORQUE RANGE [cNm]	MIN.MAX.		cNm 0.32	0.55	110	320	550		10100	30200	50400	Nm 18	316
TORQUE RANGE [cNm]	GRAD.		cNm 0.05	0.1	0.2	0.5	1		2	5	10	Nm 0.2	0.5
METRIC MODEL			02FTD2-S	05FTD2-S	1FTD2-S	2FTD2-S	5FTD2-S		10FTD2-S	20FTD2-S	40FTD2-S	80FTD2-S	160FTD2-S
TORQUE RANGE [gfcm/kgfcm]	MIN.MAX.		gfcm 30200	50500	kgfcm 0.11	0.32	0.55		110	320	540	1080	30160
TORQUE RANGE [gfcm/kgfcm]	GRAD.		gfcm 5	10	kgfcm 0.02	0.05	0.1		0.2	0.5	1	2	5
AMERICAN MODEL			FTD3Z2-S	FTD7Z2-S	FTD15Z2-S	FTD30Z2-S	FTD70Z2-S	5FTD2-A-S	10FTD2-A-S	20FTD2-A-S	40FTD2-A-S	80FTD2-A-S	160FTD2-A-S
TORQUE RANGE [ozfin/lbfin]	MIN.MAX.		ozfin 0.53	17	215	530	1070	lbfin 0.55	110	320	540	1070	20140
TORQUE RANGE [ozfin/lbfin]	GRAD.		ozfin 0.1	0.2	0.5	1	2	lbfin 0.1	0.2	0.5	1	2	5
APPLICABLE SCREW	SMALL SCREW		M1	M1.2	M1.6	M2	M2.5		M3M3.5	M4	M5	M6	M8
APPLICABLE SCREW	TAPPING SCREW		M1	M1.1M1.2	M1.4M1.6	M1.8M2	M2.2		M2.5, M3	M3.5	M4	M4.5	M6M7
DIMENSION [mm]	OVERALL LENGTH	L'	152				272					338
	GRIP	D1	20				38					50
	BODY	D2	90									112
		D3	6				13					18
		D4	9				11
		L1	85				157					188
		L2	67				115					150
WEIGHT [kg]			0.14				0.37					0.9	0.93
SCALE PLATE COLOR			RED (VERMILLION)	BLUE	GREEN	PURPLE	RED (VERMILLION)		BLUE	GREEN	PURPLE	RED (VERMILLION)	BLUE
ACCESSORY BIT	+											#3
ACCESSORY BIT	-thickness X width											1.28

Notes

FTD8N2-S and FTD16N2-S tips are square drive type (6.35 mm).

Standard accessory

Bits and auxiliary tightening tool are standard accessories only for FTD8N2-S and FTD16N2-S.

Precise Control for Sensitive Tasks

With a wide torque range of 0.4 6 Nm and a scale graduation of 0.1 Nm, the FTD-S Indicating Torque Screwdriver provides reliable precision for delicate electronic assembly or other high-accuracy fastening jobs. Its analog gauge ensures clear, accurate readings every time.

Ergonomic and Durable Construction

Constructed from high-grade steel and finished with chrome plating, the FTD-S is both robust and resistant to wear. Its handle, made from ergonomic plastic, ensures comfortable grip and optimal control, while the non-slip grip makes prolonged usage strain-free.

Compliant and Versatile Tool

The tool meets ISO 6789 standards, making it suitable for use across professional environments. With features such as reversible operation and a pre-set torque locking mechanism, this screwdriver adapts to various fastening scenarios, making it highly versatile for use by manufacturers, service providers, and more.

FAQs of Indicating Torque Screwdriver FTD-S:

Q: How does the Indicating Torque Screwdriver FTD-S notify users that the desired torque has been reached?

A: The FTD-S features an analog gauge that provides a clear, easy-to-read indication when the pre-set torque value is achieved, allowing users to stop applying force immediately at the correct level.

Q: What is the process for setting a specific torque value on this screwdriver?

A: Simply use the pre-set torque locking mechanism: rotate the scale to your desired torque within the 0.4 6 Nm range, then lock the setting in place. This ensures consistent, repetitive fastening across multiple uses.

Q: When is it recommended to use the FTD-S torque screwdriver?

A: This tool is best used during precision fastening operations, such as electronic assembly or installations where accurate torque application is critical for safety and quality compliance.

Q: Where can the FTD-S Indicating Torque Screwdriver be used professionally?

A: This screwdriver is suitable for factories, workshops, and technical service centers that require precise torque measurements and are compliant with ISO 6789 standards, especially within electronics, manufacturing, and maintenance industries.

Q: What are the main benefits of its ergonomic design and material choices?

A: The handles ergonomic plastic design offers comfort and control, while the high-grade steel and chrome-plated finish provide excellent durability. Combined, these features reduce user fatigue and ensure a robust, long-lasting tool.

Q: Is the tool reversible and how does that add to its usage?

A: Yes, the FTD-S is reversible, enabling both clockwise and counterclockwise operations. This enhances its flexibility for various fastening directions, making it suitable for diverse assembly tasks.
