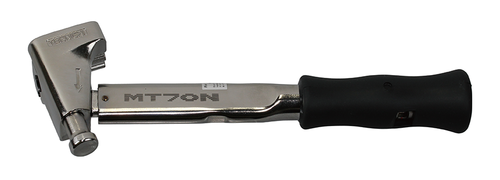

Pre-lock Torque Wrench PQLZ

Pre-lock Torque Wrench PQLZ
Pre-lock Torque Wrench PQLZ
Send Inquiry
Product Code : 256
Price And Quantity
  • Minimum Order Quantity
  • 1 Piece
Product Description

Pre-lock Torque Wrench PQLZ

Application

  • Electric motor vehicles, batteries, contamination prevention.

Features

  • Withstands voltage: Max AC1000V.
  • Prevents electric shock accidents.
  • Ideal for electric car assembly, connection of battery terminal, and wiring work.
  • Torque setting is easy to adjust by knob and scale.

Specifications

Accuracy ±3%
S.I. MODEL PQLZ25N PQLZ100N4
TORQUE RANGE
[N・m]
MIN.~MAX. 5~25 20~100
GRAD. 0.25 1
METRIC MODEL 225PQLZ 900PQLZ4
TORQUE RENGE
[kgf・cm]
MIN.~MAX. 50~250 200~900
GRAD. 2.5 10
MAX. HAND FORCE[N] 143 350
DIMENSION[mm] EFFECTIVE LENGTH(L) 155 255
OVERALL LENGTH(L') 227 334
SQ. DRIVE(a) 9.53 12.7
SQ. DRIVE(b) 11 14
HEAD(R) 15.5 19.5
HEAD(h) 24.5 34.5
HEAD(S) 26.5 32.5
BODY(m) 23 31.2
BODY(n) 14.2 17.2
BODY(φD) 30 38
WEIGHT[kg] 0.28 0.8

Standard accessory

The hex key for torque adjustment is a standard accessory.



Trade Information
  • Supply Ability
  • 10 Piece Per Day
  • Delivery Time
  • 1 Week
  • Main Export Market(s)
  • Africa, Western Europe, Eastern Europe, South America, Central America, Australia, Asia
